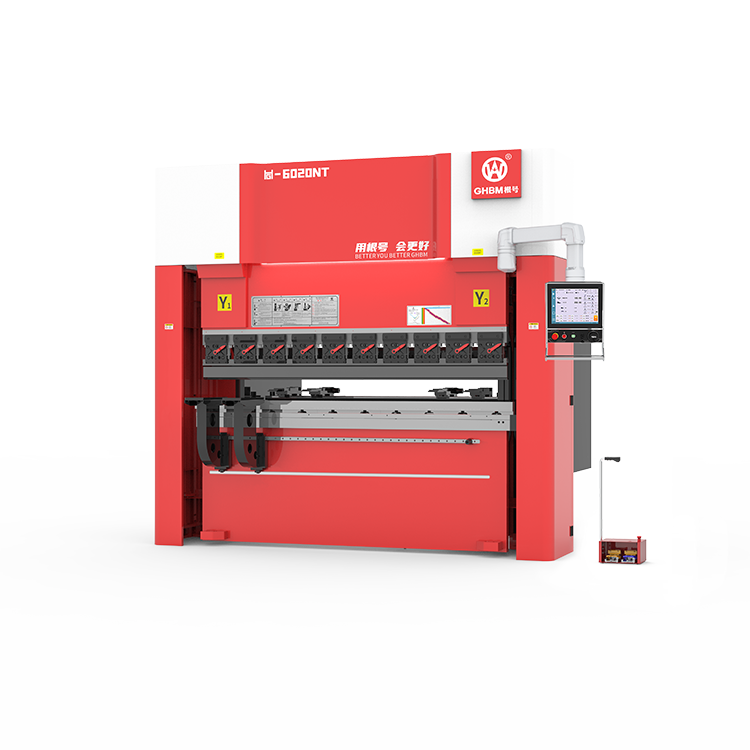

GH-6020NT (6-Axis)
60-ton, 2000 mm compact NT Series CNC press brake with a 6-axis (Y1, Y2, X, R, Z1, Z2) configuration, GHBM-700T controller and 15-inch display.
- 60 Ton Max. working force
- 2000 mm Max. bending length
- 6-Axis NC axes
- 15-inch Techmation display screen
Product description
The GH-6020NT is a compact CNC press brake from GHBM's NT Series. It has a working force of 60 tons and a maximum bending length of 2000 mm. Its six NC axes are Y1, Y2, X, R, Z1 and Z2, which control ram movement and backgauge positioning.
The machine has a 440 mm daylight opening, a 180 mm ram stroke and a 300 mm throat depth. It is controlled by a GHBM-700T CNC controller with a 15-inch Techmation display. Its configuration includes a 5.5 kW Techmation main servo motor, a DPT hydraulic system, an OPKON closed-loop position sensor, SKF/NOK cylinder seals and a GHBM double-side quick-release clamp.
Features
60-Ton Working Force
Maximum working force of 60 tons for light- to medium-duty sheet metal bending.
2000 mm Bending Length
2-metre maximum bending length, with 1710 mm between columns.
Compact Footprint
Machine dimensions of 2650 × 1750 × 2400 mm and a weight of approximately 4300 kg.
Six-Axis CNC Configuration
Y1, Y2, X, R, Z1 and Z2 axes for multi-axis control.
GHBM-700T CNC Controller
Paired with a 15-inch Techmation display screen.
5.5 kW Servo-Driven Hydraulic System
5.5 kW Techmation main servo motor, OLD hydraulic pump and DPT hydraulic system.
Quick Ram Cycle
180 mm/s approach and return speeds, with a 15 mm/s working speed.
Closed-Loop Position Feedback
Uses an OPKON closed-loop position sensor.
Fast, Repeatable Backgauge
X-axis: 600 mm stroke, up to 350 mm/s. R-axis: 150 mm stroke, up to 150 mm/s. Repeatable positioning accuracy of ≤0.05 mm on both axes.
Quick-Release Tooling
GHBM double-side quick-release clamp.
Dust-Proof Compensation Worktable
Compensation worktable with dust protection.
Hydraulic Sealing and Fittings
SKF/NOK cylinder seal kit and EATON compression fittings.
Technical Specifications
| Specification | GH-6020NT (6-Axis) |
|---|---|
| Series | NT Series |
| Max. Working Force | 60 Ton |
| Max. Bending Length | 2000 mm |
| Distance Between Columns | 1710 mm |
| Ram Stroke | 180 mm |
| Daylight Opening | 440 mm |
| Throat Depth | 300 mm |
| Number of NC Axes | 6-Axis |
| NC Axis Configuration | Y1, Y2, X, R, Z1, Z2 |
| Main Motor Servo Power | 5.5 kW |
| Ram Approaching Speed | 180 mm/s |
| Ram Working Speed | 15 mm/s |
| Ram Returning Speed | 180 mm/s |
| Backgauge X-Axis Stroke | 600 mm |
| Backgauge X-Axis Max. Running Speed | 350 mm/s |
| Backgauge X-Axis Repeatable Positioning Accuracy | ≤0.05 mm |
| Backgauge R-Axis Stroke | 150 mm |
| Backgauge R-Axis Max. Running Speed | 150 mm/s |
| Backgauge R-Axis Repeatable Positioning Accuracy | ≤0.05 mm |
| Machine Length | 2650 mm |
| Machine Width | 1750 mm |
| Machine Height | 2400 mm |
| Machine Weight | Approximately 4300 kg |
Configuration and Component Brands
| Component | Brand / Origin |
|---|---|
| Machine Frame | GHBM — China |
| Double-Side Quick-Release Clamp | GHBM — China |
| Multi-Axis Control Backgauge System | GHBM — China |
| Hydraulic Pump | OLD — China |
| Hydraulic Cylinder | GHBM — China |
| Dust-Proof Compensation Worktable | GHBM — China |
| GHBM-700T CNC Controller | GHBM — China |
| 15-Inch Display Screen | Techmation — Taiwan |
| Main Servo Motor | Techmation — Taiwan |
| X, R-Axis Servo Motor | Techmation — Taiwan |
| X, R-Axis Servo Driver | Techmation — Taiwan |
| Hydraulic System | DPT — China |
| Cylinder Seal Kit | SKF / NOK — America / Japan |
| Compression Fitting | EATON — USA |
| Foot Switch | Kacon — Korea |
| Closed-Loop Position Sensor | OPKON — Turkey |
| Inductive Proximity Switch | OMRON — Japan |
| Low-Voltage Control Components | Schneider — France |
Maintenance & care
General recommendations for servo-hydraulic CNC press brakes. Follow the manufacturer's manual for model-specific requirements.
- Daily cleaning: Remove metal debris and dust from the worktable, tooling, clamps and backgauge area.
- Hydraulic oil checks: Check oil level and condition regularly. Replace oil and filters at the manufacturer's recommended intervals.
- Leak and seal inspection: Inspect the cylinders, hoses and fittings for leaks, and replace worn seals promptly.
- Tooling inspection: Check punches, dies and quick-release clamps for wear, damage or incorrect seating.
- Lubrication: Lubricate backgauge guides, screws and other moving parts as specified by the manufacturer.
- Axis and backgauge checks: Watch for abnormal noise, vibration, positioning drift or unexpected movement.
- Electrical inspection: Check cables, connectors, switches and the control panel. Only qualified personnel should do electrical work.
- Safety checks: Before production, verify that the foot switch, emergency stops and safety devices work correctly.
- Periodic servicing: Schedule manufacturer-recommended inspections and keep a log of maintenance and faults.
