GH-3512NT

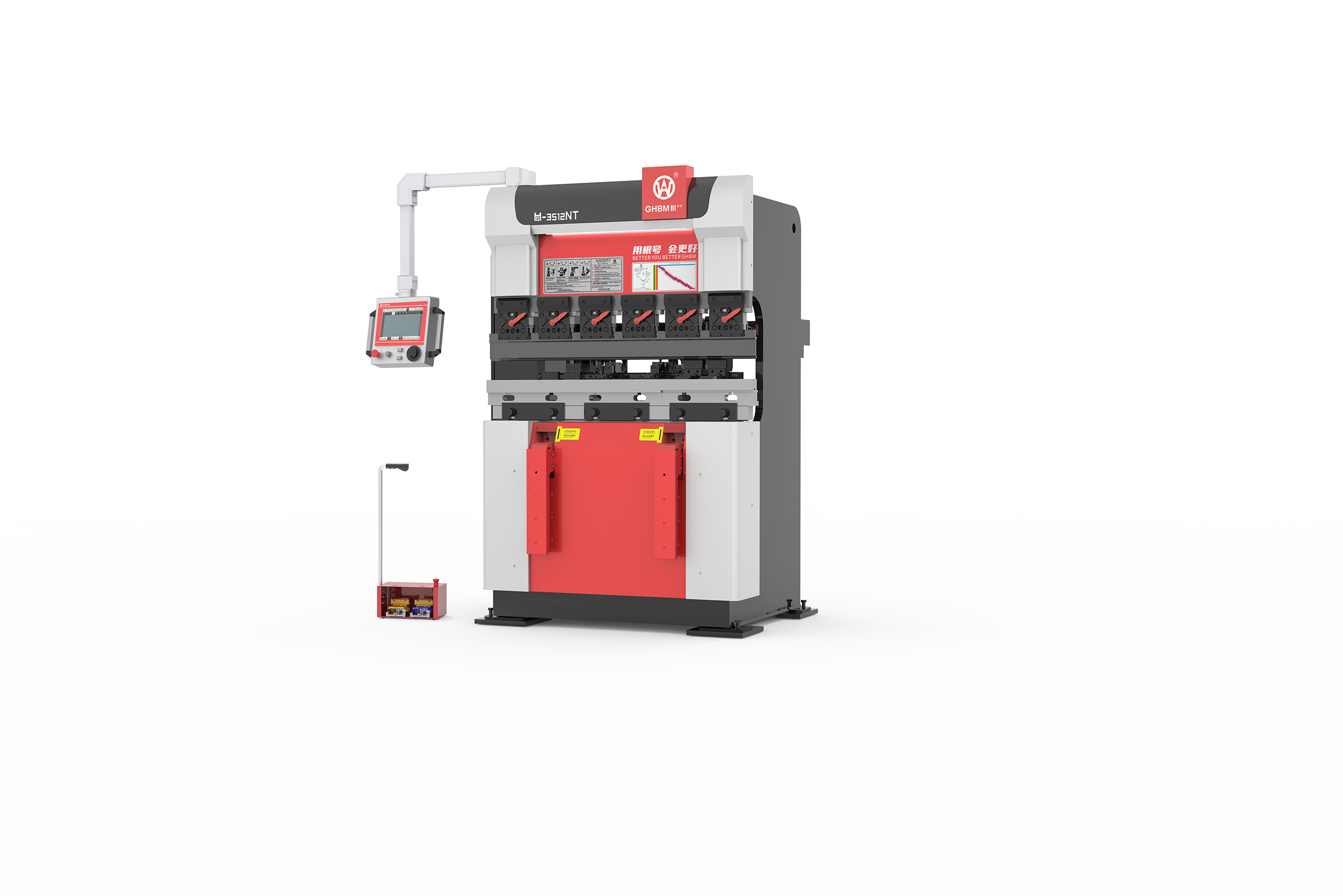

35-ton, 1200 mm compact CNC press brake with a 3-axis (Y, X, R) NC system, 4 kW main motor and a 10-inch display.
- 35 T Bending force
- 1200 mm Maximum bending length
- 3-Axis Y / X / R NC system
- 10-inch Display screen
Product description
The GH-3512NT is a 35-ton CNC press brake designed for sheet metal bending applications requiring a compact machine configuration. With a maximum bending length of 1200 mm and a 3-axis NC system (Y, X, R), it supports a range of bending operations. The machine features a 100 mm table stroke, 400 mm daylight opening, 300 mm throat depth and a maximum X-axis backgauge stroke of 550 mm. Its hydraulic system, 4 kW main motor and 10-inch display screen support machine operation for industrial sheet metal processing.
Features
35-Ton Bending Capacity
A maximum working force of 35 tons supports sheet metal bending requirements within the machine's rated capacity.
1200 mm Bending Length
The maximum bending length of 1200 mm accommodates shorter sheet metal components and fabrication jobs.
3-Axis NC System
The Y, X and R axis configuration supports machine positioning and backgauge operations.
Compact Machine Design
With dimensions of 1400 × 1150 × 2050 mm and an approximate weight of 1800 kg, the machine offers a compact footprint for workshop installations.
10-Inch Display Screen
The machine is equipped with a 10-inch display screen for its operator interface.
Hydraulic System
The machine features a hydraulic system, one hydraulic cylinder and a 33-litre oil tank.
Double-Side Quick-Release Punch Holder
The specified quick-release punch holder supports punch tooling setup and removal.
Industrial Electrical Components
The configuration includes components from ABB, Mitsubishi, OMRON/Panasonic, Yamatake, Kacon and other specified suppliers.
Backgauge Positioning
A maximum X-axis backgauge stroke of 550 mm supports workpiece positioning during bending operations.
Technical Specifications
| Specification | GH-3512NT |
|---|---|
| Maximum Working Force | 35 Ton |
| Maximum Bending Length | 1200 mm |
| Distance Between Columns | 1020 mm |
| Table Stroke | 100 mm |
| Daylight Opening | 400 mm |
| Throat Depth | 300 mm |
| Number of NC Axes | Y, X, R — 3-Axis |
| Main Motor Power | 4 kW |
| Number of Hydraulic Cylinders | 1 pc |
| Oil Tank Capacity | 33 L |
| Maximum Backgauge Stroke (X-axis) | 550 mm |
| Ram Up Speed | 46 mm/s |
| Ram Bending Speed | 10 mm/s |
| Ram Down Speed | 42 mm/s |
| Machine Length | 1400 mm |
| Machine Width | 1150 mm |
| Machine Height | 2050 mm |
| Machine Weight | Approximately 1800 kg |
Configuration and Component Brands
| Component | Brand / Origin |
|---|---|
| Intermediate Relay | ABB — Switzerland |
| Closed-Loop Position Sensor | Nationally renowned brands — China |
| Foot Switch | Kacon — Korea |
| Limit Switch | Yamatake — Japan |
| PLC Controller | Mitsubishi — Japan |
| Proximity Switch | OMRON / Panasonic — Japan |
| Hydraulic Cylinder Seal Kit | NOK — Japan |
| Machine Frame | GHBM — China |
| Double-Side Quick-Release Punch Holder | GHBM — China |
| Relay Module | GHBM — China |
| Hydraulic System | GHBM — China |
| 10-Inch Display Screen | GHBM — China |
| Hydraulic Solenoid Valve | GHBM — China |
| Hydraulic Pump | GHBM — China |
| X- and Y-Axis Servo Motor | FLEXEM — China |
| X- and Y-Axis Servo Driver | FLEXEM — China |
| Electronic Pulse Encoder | Lingdu — China |
| Power Supply | MEAN WELL — Taiwan |
Maintenance & care
Follow the manufacturer's recommended maintenance schedule for the hydraulic system, electrical components, backgauge and tooling. Regularly inspect hydraulic connections, check oil levels, keep the worktable and tooling clean, and operate the machine according to the manufacturer's instructions.
