Upstroke press brake

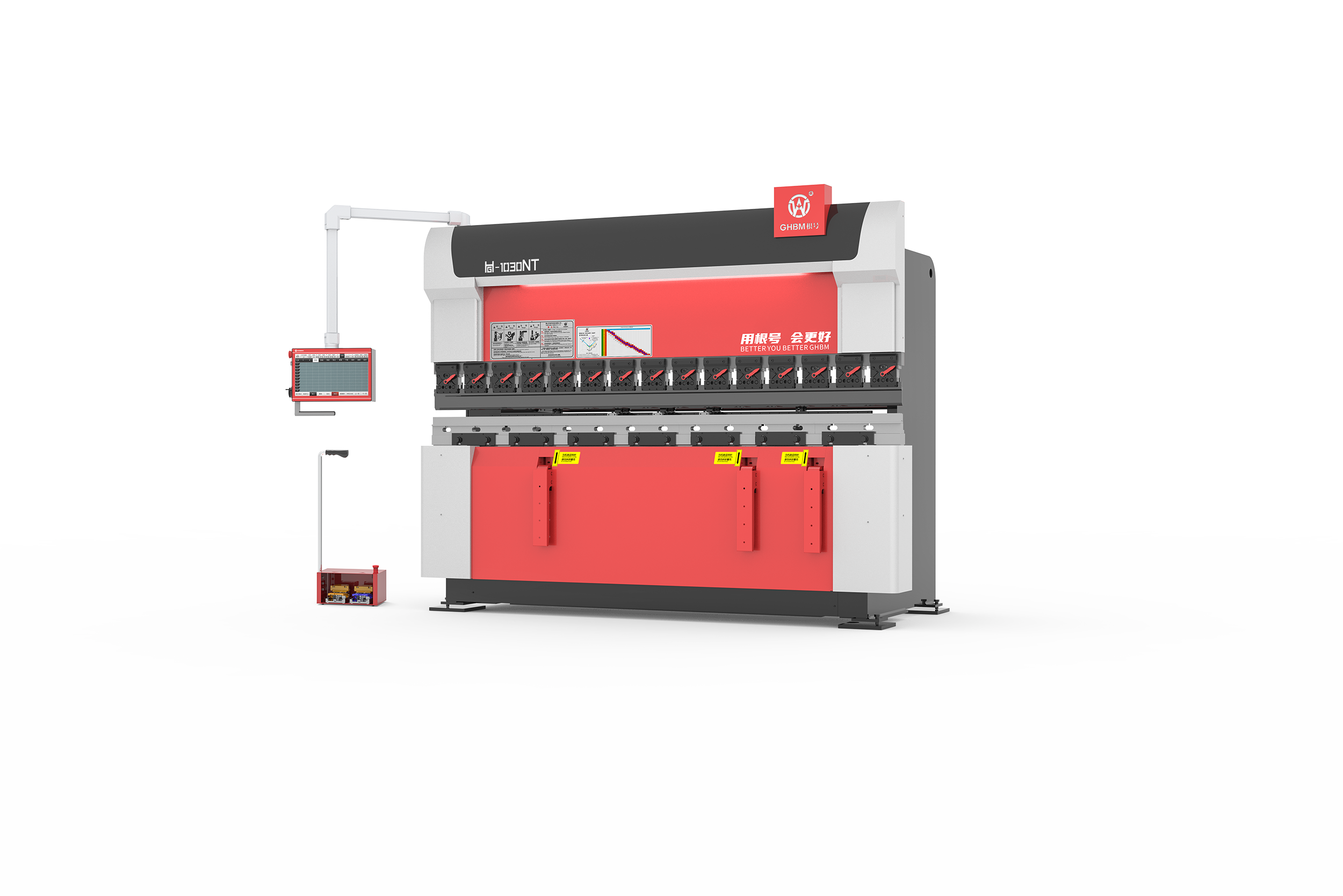

100-ton, 3000 mm CNC press brake with a 3-axis (Y, X, R) NC system, FLEXEM servo drives and a 15-inch display.
- 100 T Bending force
- 3000 mm Maximum bending length
- 3-Axis Y / X / R NC system
- 15-inch Display screen
Product description
The GH-1030NT is a 100-ton CNC press brake designed for industrial sheet metal bending applications. With a maximum bending length of 3000 mm and a 3-axis NC system (Y, X, R), the machine supports a range of bending operations. Its 100 mm table stroke, 400 mm daylight opening, 400 mm throat depth and 550 mm maximum X-axis backgauge stroke provide working capacity for varied component requirements. The machine features a 15-inch display screen, servo motor and driver configuration, and a hydraulic system for industrial bending operations.
Features
100-Ton Bending Capacity
Maximum working force of 100 tons, suitable for industrial sheet metal bending applications.
3000 mm Bending Length
A maximum bending length of 3000 mm supports the processing of longer sheet metal components.
3-Axis NC System
The Y, X and R axis configuration supports machine positioning and backgauge operations.
Servo Motor and Driver Configuration
The specified X- and Y-axis servo motors and servo drivers are supplied by FLEXEM, according to the configuration table.
15-Inch Display Screen
A 15-inch display screen provides the machine's operator interface.
Hydraulic System
The machine is equipped with a hydraulic system, three hydraulic cylinders and a 65-litre oil tank.
Quick-Release Punch Holder
The specified double-side quick-release punch holder supports punch tooling setup.
Industrial Electrical Components
The configuration includes components from ABB, Mitsubishi, OMRON/Panasonic, Yamatake, Kacon, MEAN WELL and other specified suppliers.
Compact Machine Dimensions
With overall dimensions of 3100 × 1400 × 2450 mm and an approximate weight of 6400 kg, the machine is designed for industrial workshop installation.
Technical Specifications
| Specification | GH-1030NT |
|---|---|
| Maximum Working Force | 100 Ton |
| Maximum Bending Length | 3000 mm |
| Distance Between Columns | 2550 mm |
| Table Stroke | 100 mm |
| Daylight Opening | 400 mm |
| Throat Depth | 400 mm |
| Number of NC Axes | Y, X, R — 3-Axis |
| Main Motor Power | 7.5 kW |
| Number of Hydraulic Cylinders | 3 pcs |
| Oil Tank Capacity | 65 L |
| Maximum Backgauge Stroke (X-axis) | 550 mm |
| Ram Up Speed | 58 mm/s |
| Ram Bending Speed | 10 mm/s |
| Ram Down Speed | 52 mm/s |
| Machine Length | 3100 mm |
| Machine Width | 1400 mm |
| Machine Height | 2450 mm |
| Machine Weight | Approximately 6400 kg |
Configuration and Component Brands
| Component | Brand / Origin |
|---|---|
| Intermediate Relay | ABB — Switzerland |
| Closed-Loop Position Sensor | Nationally renowned brands — China |
| Foot Switch | Kacon — Korea |
| Limit Switch | Yamatake — Japan |
| PLC Controller | Mitsubishi — Japan |
| Proximity Switch | OMRON / Panasonic — Japan |
| Hydraulic Cylinder Seal Kit | NOK — Japan |
| Machine Frame | GHBM — China |
| Double-Side Quick-Release Punch Holder | GHBM — China |
| Relay Module | GHBM — China |
| Hydraulic System | GHBM — China |
| 15-Inch Display Screen | GHBM — China |
| Hydraulic Solenoid Valve | GHBM — China |
| Hydraulic Pump | GHBM — China |
| X- and Y-Axis Servo Motor | FLEXEM — China |
| X- and Y-Axis Servo Driver | FLEXEM — China |
| Electronic Pulse Encoder | Lingdu — China |
| Power Supply | MEAN WELL — Taiwan |
Maintenance & care
Follow the manufacturer's recommended maintenance schedule for the hydraulic system, electrical components, servo drives, backgauge and tooling. Regularly inspect hydraulic connections, check oil levels, keep the working table and tooling clean, and ensure that all maintenance is carried out according to the manufacturer's instructions.
