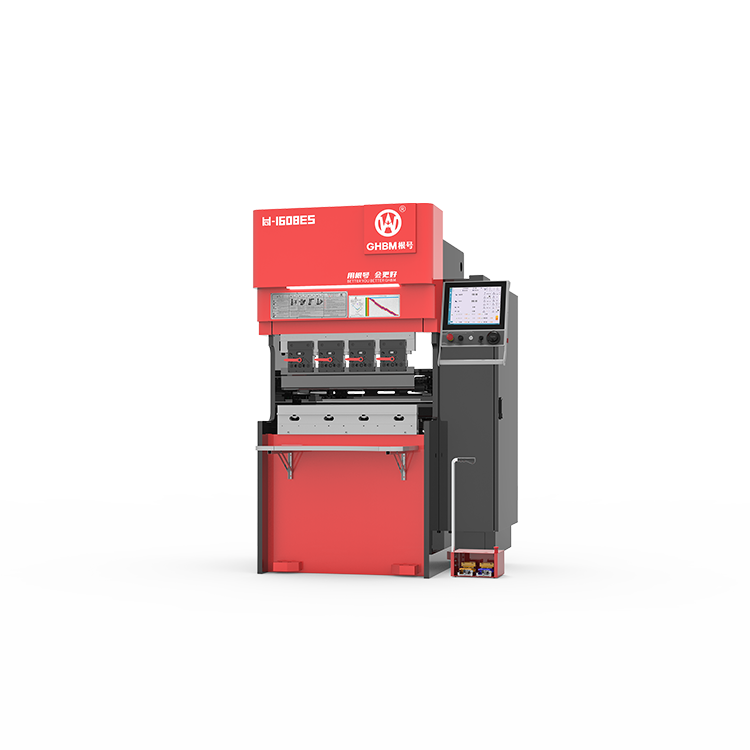

GH-1608FES
16-ton, 800 mm compact CNC press brake with a 5-axis (Y, R, X, Z1, Z2) NC system, GHBM-73BA controller and 10-inch Techmation display.
- 16 T Rated bending force
- 800 mm Working length
- 5-Axis Y / R / X / Z1 / Z2
- 10-inch Display screen
Product description
The GH-1608FES is a 16-ton CNC press brake designed for sheet metal bending applications. It features a working length of 800 mm and a 5-axis NC configuration comprising Y, R, X, Z1 and Z2 axes to support ram movement and backgauge positioning during bending operations.
The machine has a maximum daylight opening of 420 mm, a daylight opening of 300 mm without intermediate clamps, a throat depth of 120 mm and a distance of 960 mm between side frames. The worktable height is 870 mm from the floor to the top.
Its specifications include a 180 mm ram Y-axis stroke, an approach speed of 130–150 mm/s, a bending speed of 0.2–50 mm/s, a return speed of 130–150 mm/s and a specified ram-axis accuracy of ±0.005 mm. The X-axis backgauge has a 230 mm stroke, a moving speed of 500–700 mm/s and an accuracy of ±0.01 mm. The R-axis backgauge has a moving speed of 80–150 mm/s and an accuracy of ±0.1 mm.
The machine measures 1400 × 1200 × 2100 mm and weighs approximately 1500 kg. Its configuration includes a GHBM-73BA CNC controller, a 10-inch Techmation display screen, Techmation servo components, HIWIN linear guide rails, NSK bearings and Schneider electrical components.
Features
16-Ton Bending Capacity
The rated bending force of 16 tons supports sheet metal bending requirements within the machine's rated capacity.
800 mm Working Length
The 800 mm working length provides a compact bending area for smaller sheet metal components.
5-Axis NC System
The Y, R, X, Z1 and Z2 axis configuration supports ram movement and backgauge positioning during bending operations.
Compact Machine Construction
With dimensions of 1400 × 1200 × 2100 mm and an approximate weight of 1500 kg, the machine suits workshops requiring a compact press brake.
CNC Controller and Display
The machine includes a GHBM-73BA CNC controller and a 10-inch Techmation display screen.
Ram Movement and Accuracy
The ram Y-axis has a 180 mm stroke, a bending speed of 0.2–50 mm/s and a specified accuracy of ±0.005 mm.
Backgauge Positioning
The X-axis backgauge has a 230 mm stroke and ±0.01 mm accuracy. The R-axis backgauge has a specified accuracy of ±0.1 mm.
Z-Axis Movement
The Z1 and Z2 axes have a specified moving speed of 700–900 mm/s.
Servo and Linear Motion Components
The configuration includes Techmation servo motors and servo drives, HJC ground Class C5 ball screws and HIWIN linear guide rails.
Industrial Electrical Components
The configuration includes OMRON inductive proximity switches, a Kacon foot switch, a Schneider AC contactor and Schneider circuit protection components.
Double-Side Quick-Release Clamp
The machine configuration specifies a double-side quick-release clamp described as an Amada-equivalent model.
Technical Specifications
| Specification | GH-1608FES |
|---|---|
| Rated Bending Force | 16 Ton |
| Working Length | 800 mm |
| Maximum Daylight Opening | 420 mm |
| Daylight Opening (without intermediate clamps) | 300 mm |
| Throat Depth | 120 mm |
| Distance Between Side Frames | 960 mm |
| Worktable Height (Floor to Top) | 870 mm |
| Number of NC Axes | 5-Axis |
| NC Axis Configuration | Y, R, X, Z1, Z2 |
| Main Motor Power | 9.8 kW |
| Rated Power Consumption | 2.9 kW |
| Z1 and Z2 Axis Moving Speed | 700–900 mm/s |
| Ram Y-Axis Stroke | 180 mm |
| Ram Approach Speed | 130–150 mm/s |
| Ram Bending Speed | 0.2–50 mm/s |
| Ram Return Speed | 130–150 mm/s |
| Ram Y-Axis Accuracy | ±0.005 mm |
| Backgauge X-Axis Stroke | 230 mm |
| Backgauge X-Axis Moving Speed | 500–700 mm/s |
| Backgauge X-Axis Accuracy | ±0.01 mm |
| Backgauge R-Axis Moving Speed | 80–150 mm/s |
| Backgauge R-Axis Accuracy | ±0.1 mm |
| Machine Length | 1400 mm |
| Machine Width | 1200 mm |
| Machine Height | 2100 mm |
| Machine Weight | Approximately 1500 kg |
Configuration and Component Brands
| Component | Brand / Origin |
|---|---|
| Machine Frame (Q355) | GHBM — China |
| GHBM-73BA CNC Controller | GHBM — China |
| 10-Inch Display Screen | Techmation — Taiwan |
| Ball Screw (Ground, Class C5) | HJC — China |
| Servo Motor | Techmation — Taiwan |
| Servo Drive | Techmation — Taiwan |
| Linear Guide Rail | HIWIN — Taiwan |
| Ball Screw Support Bearings | NSK — Japan |
| Support-Side Bearings | NSK — Japan |
| Y-Axis Bearings | NSK — Japan |
| Double-Row Angular Contact Ball Bearings | NSK — Japan |
| Inductive Proximity Switch | OMRON — Japan |
| Timing Belt | CATES — America |
| Foot Switch | Kacon — Korea |
| AC Contactor | Schneider — France |
| Circuit Breaker Switch | Schneider — France |
| Circuit Breaker | Schneider — France |
| Double-Side Quick-Release Clamp | Amada-equivalent model — China |
Maintenance & care
Follow the manufacturer's recommended maintenance schedule to support reliable machine operation.
- Regularly inspect the ram, machine frame, mechanical components and connections.
- Keep the worktable, clamps, tooling and backgauge mechanisms clean.
- Inspect ball screws, linear guide rails and bearings periodically, and lubricate them according to manufacturer guidelines.
- Check servo motors, servo drives, proximity switches and electrical components for proper operation.
- Inspect the CNC controller, foot switch and safety-related components regularly.
- Check the Z1 and Z2 backgauge mechanisms for smooth movement and proper positioning.
- Operate the machine according to the manufacturer's safety and operating instructions.
