GH-6020FES

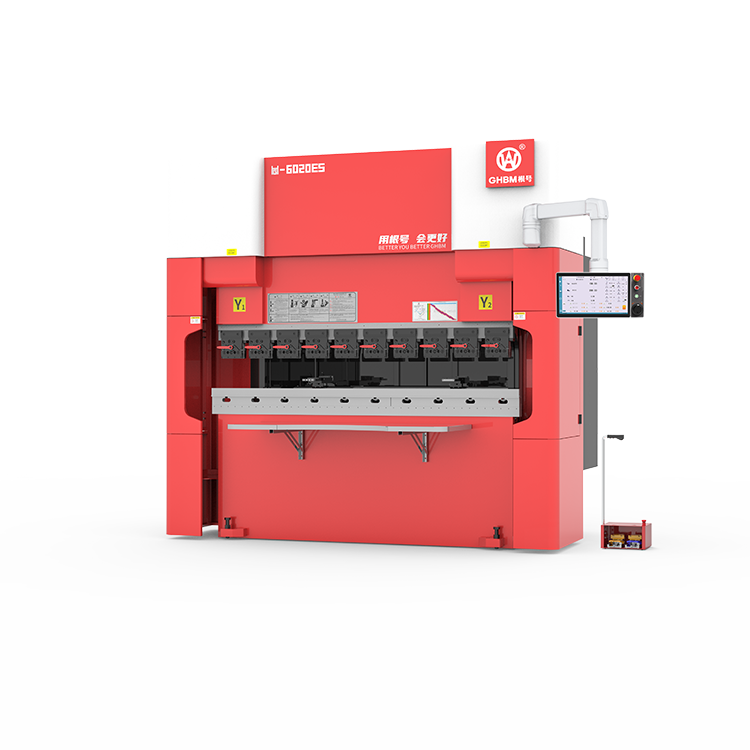

60-ton, 2000 mm CNC press brake with a 7-axis (Y1, Y2, R, X, D, Z1, Z2) configuration, GHBM-940T controller and 21.5-inch display.
- 60 Ton Rated bending force
- 2000 mm Working length
- 7-Axis NC axes
- 21.5-inch Display screen
Product description
The GH-6020FES 7-Axis CNC Press Brake is a CNC-controlled sheet metal bending machine with a rated bending force of 60 tons and a working length of 2000 mm. It features a seven-axis configuration — Y1, Y2, R, X, D, Z1 and Z2 — designed to support controlled ram movement and flexible backgauge positioning.
The machine specifications include a maximum daylight opening of 470 mm, a 220 mm ram stroke, and a 21.5-inch Techmation display paired with a GHBM-940T CNC controller. Its configuration includes Techmation servo motors and drives, HIWIN linear guide rails, NSK bearings, and an Amada-equivalent double-side quick-release clamp model.
Features
60-Ton Bending Capacity
Rated bending force of 60 tons for suitable sheet metal bending applications.
2000 mm Working Length
Provides a 2-metre working length for compatible workpieces.
Seven-Axis CNC Configuration
Includes Y1, Y2, R, X, D, Z1 and Z2 axes for multi-axis control.
GHBM-940T CNC Controller
Specified with a 21.5-inch Techmation display screen.
Servo-Driven System
Uses Techmation servo motor and servo drive components.
Precision Motion Components
Includes a ground C5-class HJC ball screw, HIWIN linear guide rail, and NSK bearings.
Adjustable Backgauge Movement
X-axis stroke is 600 mm, with a moving speed of 350 mm/s.
Quick-Release Clamping
The configuration includes a double-side quick-release clamp, described as an Amada-equivalent model.
Specified Ram Accuracy
Ram Y-axis accuracy is specified as ±0.005 mm.
Technical Specifications
| Specification | GH-6020FES |
|---|---|
| Rated Bending Force | 60 Ton |
| Working Length | 2000 mm |
| Maximum Daylight Opening | 470 mm |
| Daylight Opening (without intermediate clamps) | 350 mm |
| Throat Depth | 400 mm |
| Distance Between Side Frames | 1500 mm |
| Worktable Height (Floor to Top) | 870 mm |
| Number of NC Axes | 7-Axis |
| NC Axis Configuration | Y1, Y2, R, X, D, Z1, Z2 |
| Main Motor Power | 35 kW |
| Rated Power Consumption | 5 kW |
| Z-Axis Moving Speed | 700–900 mm/s |
| Ram Y-Axis Stroke | 220 mm |
| Ram Approach Speed | 190–200 mm/s |
| Ram Bending Speed | 0.2–50 mm/s |
| Ram Return Speed | 190–200 mm/s |
| Ram Y-Axis Accuracy | ±0.005 mm |
| Backgauge X-Axis Stroke | 600 mm |
| Backgauge X-Axis Moving Speed | 350 mm/s |
| Backgauge X-Axis Accuracy | ±0.01 mm |
| Backgauge R-Axis Moving Speed | 80–150 mm/s |
| Backgauge R-Axis Accuracy | ±0.1 mm |
| Machine Length | 2600 mm |
| Machine Width | 1800 mm |
| Machine Height | 2510 mm |
| Machine Weight | Approximately 5500 kg |
Configuration and Component Brands
| Component | Brand / Origin |
|---|---|
| Machine Frame (Q355) | GHBM — China |
| GHBM-940T CNC Controller | GHBM — China |
| 21.5-Inch Display Screen | Techmation — Taiwan |
| Ball Screw (Ground, Class C5) | HJC — China |
| Servo Motor | Techmation — Taiwan |
| Servo Drive | Techmation — Taiwan |
| Linear Guide Rail | HIWIN — Taiwan |
| Ball Screw Support Bearings | NSK — Japan |
| Support-Side Bearings | NSK — Japan |
| Y-Axis Bearings | NSK — Japan |
| Double-Row Angular Contact Ball Bearings | NSK — Japan |
| Inductive Proximity Switch | OMRON — Japan |
| Timing Belt | CATES — America |
| Foot Switch | Kacon — Korea |
| AC Contactor | Schneider — France |
| Circuit Breaker Switch | Schneider — France |
| Circuit Breaker | Schneider — France |
| Double-Side Quick-Release Clamp | Amada-equivalent model — China |
Maintenance & care
General care recommendations for CNC press brakes. Follow the manufacturer's manual for model-specific requirements.
- Daily cleaning: Remove metal debris and dust from the worktable, tooling and surrounding machine area.
- Tooling inspection: Check punches, dies and clamping components for wear, damage or incorrect seating.
- Lubrication: Inspect and maintain lubrication points according to the manufacturer's instructions.
- Electrical inspection: Check cables, connectors, switches and control-panel condition; maintenance work should be performed by qualified personnel.
- Axis and backgauge checks: Watch for abnormal noise, vibration, inconsistent positioning or unexpected movement.
- Safety checks: Verify that the machine's safety devices and operating controls function correctly before production.
- Periodic servicing: Arrange manufacturer-recommended inspections and keep a record of maintenance and any faults.
