π3613FES

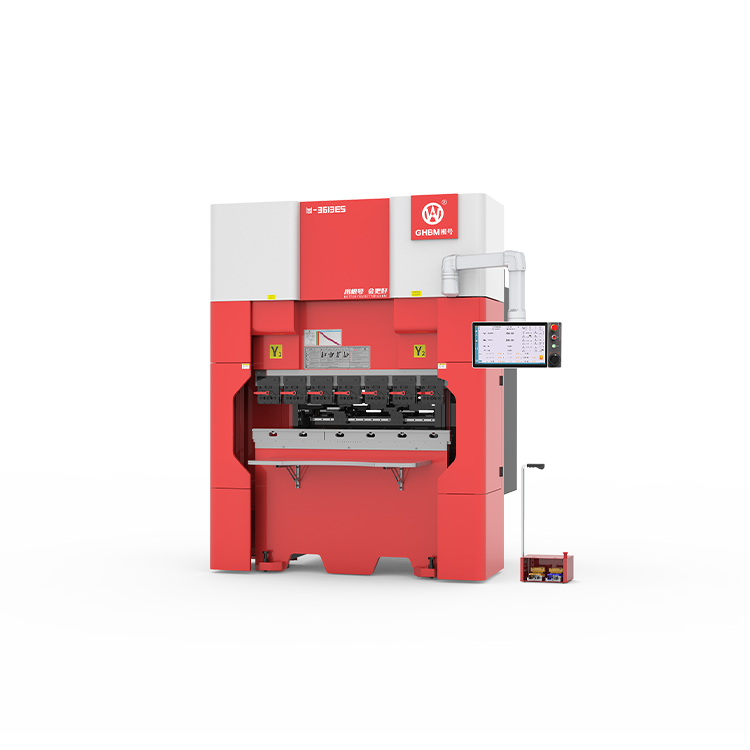

36-ton, 1250 mm CNC press brake with a 7-axis (Y1, Y2, R, X, D, Z1, Z2) configuration, GHBM-940T controller, HDT servo drives and 21.5-inch display.
- 36 Ton Rated bending force
- 1250 mm Working length
- 7-Axis NC axes
- 21.5-inch Display screen
Product description
The π3613FES 7-Axis CNC Press Brake is a CNC-controlled sheet metal bending machine with a rated bending force of 36 tons and a working length of 1250 mm. It features a seven-axis configuration — Y1, Y2, R, X, D, Z1 and Z2 — designed to provide controlled ram movement and flexible backgauge positioning.
The machine specifications include a maximum daylight opening of 470 mm, a ram stroke of 180 mm, and a 21.5-inch Techmation display. Its configuration includes a GHBM-940T CNC controller, HDT servo motors and drives from Italy, HIWIN linear guide rails, NSK bearings, and a double-side quick-release clamp described as an Amada-equivalent model.
Features
36-Ton Bending Capacity
Rated bending force of 36 tons for suitable sheet metal bending applications.
1250 mm Working Length
Provides a 1.25-metre working length for compatible workpieces.
Seven-Axis CNC Configuration
Includes Y1, Y2, R, X, D, Z1 and Z2 axes.
GHBM-940T CNC Controller
A GHBM-940T CNC controller paired with a 21.5-inch Techmation display.
HDT Servo-Driven System
Features HDT (Italy) servo motor and servo drive components.
Precision Motion Components
Includes a ground C5-class HJC ball screw, HIWIN linear guide rail and NSK bearings.
Adjustable Backgauge Movement
X-axis stroke of 500 mm and a moving speed of 350–600 mm/s.
Quick-Release Clamping
Features a double-side quick-release clamp, described as an Amada-equivalent model.
Specified Ram Accuracy
Ram Y-axis accuracy is specified as ±0.005 mm.
High-Speed Z-Axis Movement
Z-axis moving speed of 700–900 mm/s.
Technical Specifications
| Specification | π3613FES |
|---|---|
| Rated Bending Force | 36 Ton |
| Working Length | 1250 mm |
| Maximum Daylight Opening | 470 mm |
| Daylight Opening (without intermediate clamps) | 350 mm |
| Throat Depth | 360 mm |
| Distance Between Side Frames | 960 mm |
| Worktable Height (Floor to Top) | 950 mm |
| Number of NC Axes | 7-Axis |
| NC Axis Configuration | Y1, Y2, R, X, D, Z1, Z2 |
| Main Motor Power | 28 kW |
| Rated Power Consumption | 3.5 kW |
| Z-Axis Moving Speed | 700–900 mm/s |
| Ram Y-Axis Stroke | 180 mm |
| Ram Approach Speed | 150–210 mm/s |
| Ram Bending Speed | 0.2–50 mm/s |
| Ram Return Speed | 150–210 mm/s |
| Ram Y-Axis Accuracy | ±0.005 mm |
| Backgauge X-Axis Stroke | 500 mm |
| Backgauge X-Axis Moving Speed | 350–600 mm/s |
| Backgauge X-Axis Accuracy | ±0.01 mm |
| Backgauge R-Axis Moving Speed | 80–150 mm/s |
| Backgauge R-Axis Accuracy | ±0.1 mm |
| Machine Length | 2000 mm |
| Machine Width | 1800 mm |
| Machine Height | 2300 mm |
| Machine Weight | Approximately 3500 kg |
Configuration and Component Brands
| Component | Brand / Origin |
|---|---|
| Machine Frame (Q355) | GHBM — China |
| GHBM-940T CNC Controller | GHBM — China |
| 21.5-Inch Display Screen | Techmation — Taiwan |
| Ball Screw (Ground, Class C5) | HJC — China |
| Servo Motor | HDT — Italy |
| Servo Drive | HDT — Italy |
| Linear Guide Rail | HIWIN — Taiwan |
| Ball Screw Support Bearings | NSK — Japan |
| Support-Side Bearings | NSK — Japan |
| Y-Axis Bearings | NSK — Japan |
| Double-Row Angular Contact Ball Bearings | NSK — Japan |
| Inductive Proximity Switch | OMRON — Japan |
| Timing Belt | CATES — America |
| Foot Switch | Kacon — Korea |
| AC Contactor | Schneider — France |
| Circuit Breaker Switch | Schneider — France |
| Circuit Breaker | Schneider — France |
| Double-Side Quick-Release Clamp | Amada-equivalent model — China |
Maintenance & care
General CNC press brake care recommendations. Follow the manufacturer's operating and maintenance manual.
- Daily cleaning: Remove metal debris and dust from the worktable, tooling and surrounding machine area.
- Tooling inspection: Check punches, dies and clamping components for wear, damage and correct seating.
- Lubrication: Inspect lubrication points and maintain them according to the manufacturer's instructions.
- Electrical inspection: Check cables, connectors, switches and control-panel condition. Electrical maintenance should be performed by qualified personnel.
- Axis and backgauge checks: Monitor abnormal noise, vibration, inconsistent positioning or unexpected movement.
- Safety checks: Verify that safety devices and operating controls function correctly before production.
- Periodic servicing: Arrange manufacturer-recommended inspections and maintain records of servicing and faults.
