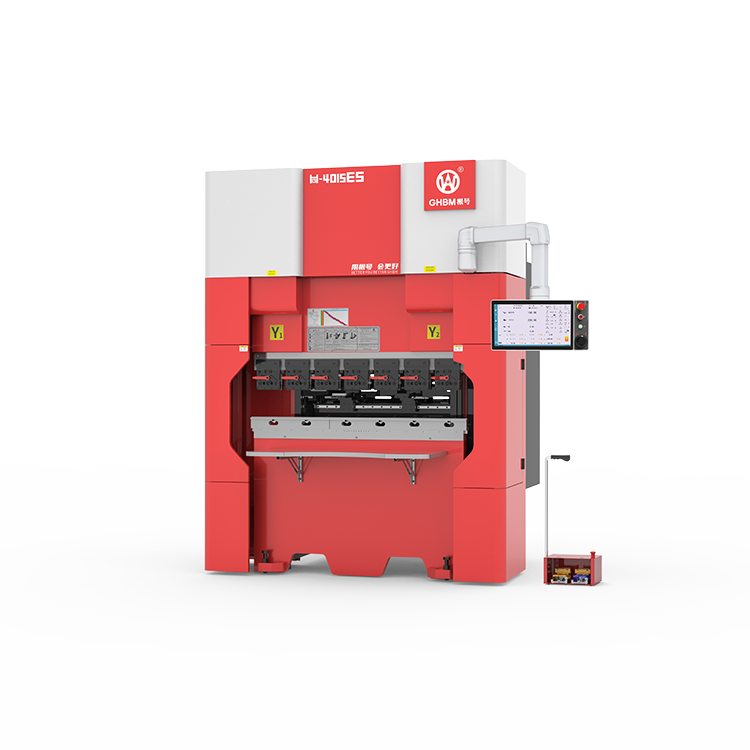

GH-4015FES
40-ton, 1500 mm CNC press brake with a 7-axis (Y1, Y2, R, X, D, Z1, Z2) configuration, GHBM-940T controller and 21.5-inch display.
- 40 T Rated bending force
- 1500 mm Working length
- 7-Axis Y1 / Y2 / R / X / D / Z1 / Z2
- 21.5-inch Display screen
Product description
The GH-4015FES is a 40-ton CNC press brake designed for sheet metal bending applications. It features a working length of 1500 mm and a 7-axis NC configuration comprising Y1, Y2, R, X, D, Z1 and Z2 axes to support ram movement and backgauge positioning during bending operations.
The machine has a maximum daylight opening of 470 mm, a daylight opening of 350 mm without intermediate clamps, a throat depth of 360 mm and a distance of 1160 mm between side frames. The worktable height is 870 mm from the floor to the top.
Its specifications include a 200 mm ram Y-axis stroke, an approach speed of 190–210 mm/s, a bending speed of 0.2–50 mm/s, a return speed of 190–210 mm/s and a specified ram-axis accuracy of ±0.005 mm. The X-axis backgauge has a 520 mm stroke, a moving speed of 500–700 mm/s and an accuracy of ±0.01 mm. The R-axis backgauge has a moving speed of 80–150 mm/s and an accuracy of ±0.1 mm.
The machine measures 2200 × 1800 × 2500 mm and weighs approximately 3800 kg. Its configuration includes a GHBM-940T CNC controller, a 21.5-inch Techmation display screen, Techmation servo components, HIWIN linear guide rails, NSK bearings and Schneider electrical components.
Features
40-Ton Bending Capacity
The rated bending force of 40 tons supports sheet metal bending requirements within the machine's rated capacity.
1500 mm Working Length
The 1500 mm working length provides a bending area for sheet metal components of varying sizes within the machine's capacity.
7-Axis NC System
The Y1, Y2, R, X, D, Z1 and Z2 axis configuration supports ram movement and backgauge positioning during bending operations.
Large Daylight Opening
The machine offers a maximum daylight opening of 470 mm, with a specified opening of 350 mm without intermediate clamps.
Ram Movement and Accuracy
The ram Y-axis has a 200 mm stroke, an approach and return speed of 190–210 mm/s, a bending speed of 0.2–50 mm/s and a specified accuracy of ±0.005 mm.
Backgauge Positioning
The X-axis backgauge has a 520 mm stroke and ±0.01 mm accuracy. The R-axis backgauge has a specified accuracy of ±0.1 mm.
CNC Controller and Display
The configuration includes a GHBM-940T CNC controller and a 21.5-inch Techmation display screen.
Servo and Linear Motion Components
The configuration includes Techmation servo motors and servo drives, HJC ground Class C5 ball screws and HIWIN linear guide rails.
Industrial Electrical Components
The configuration includes OMRON inductive proximity switches, a Kacon foot switch, a Schneider AC contactor and Schneider circuit protection components.
Industrial Machine Construction
With dimensions of 2200 × 1800 × 2500 mm and an approximate weight of 3800 kg, the machine is configured for industrial workshop installations.
Double-Side Quick-Release Clamp
The configuration specifies a double-side quick-release clamp described as an Amada-equivalent model.
Technical Specifications
| Specification | GH-4015FES |
|---|---|
| Rated Bending Force | 40 Ton |
| Working Length | 1500 mm |
| Maximum Daylight Opening | 470 mm |
| Daylight Opening (without intermediate clamps) | 350 mm |
| Throat Depth | 360 mm |
| Distance Between Side Frames | 1160 mm |
| Worktable Height (Floor to Top) | 870 mm |
| Number of NC Axes | 7-Axis |
| NC Axis Configuration | Y1, Y2, R, X, D, Z1, Z2 |
| Main Motor Power | 28 kW |
| Rated Power Consumption | 3.5 kW |
| Z-Axis Moving Speed | 700–900 mm/s |
| Ram Y-Axis Stroke | 200 mm |
| Ram Approach Speed | 190–210 mm/s |
| Ram Bending Speed | 0.2–50 mm/s |
| Ram Return Speed | 190–210 mm/s |
| Ram Y-Axis Accuracy | ±0.005 mm |
| Backgauge X-Axis Stroke | 520 mm |
| Backgauge X-Axis Moving Speed | 500–700 mm/s |
| Backgauge X-Axis Accuracy | ±0.01 mm |
| Backgauge R-Axis Moving Speed | 80–150 mm/s |
| Backgauge R-Axis Accuracy | ±0.1 mm |
| Machine Length | 2200 mm |
| Machine Width | 1800 mm |
| Machine Height | 2500 mm |
| Machine Weight | Approximately 3800 kg |
Configuration and Component Brands
| Component | Brand / Origin |
|---|---|
| Machine Frame (Q355) | GHBM — China |
| GHBM-940T CNC Controller | GHBM — China |
| 21.5-Inch Display Screen | Techmation — Taiwan |
| Ball Screw (Ground, Class C5) | HJC — China |
| Servo Motor | Techmation — Taiwan |
| Servo Drive | Techmation — Taiwan |
| Linear Guide Rail | HIWIN — Taiwan |
| Ball Screw Support Bearings | NSK — Japan |
| Support-Side Bearings | NSK — Japan |
| Y-Axis Bearings | NSK — Japan |
| Double-Row Angular Contact Ball Bearings | NSK — Japan |
| Inductive Proximity Switch | OMRON — Japan |
| Timing Belt | CATES — America |
| Foot Switch | Kacon — Korea |
| AC Contactor | Schneider — France |
| Circuit Breaker Switch | Schneider — France |
| Circuit Breaker | Schneider — France |
| Double-Side Quick-Release Clamp | Amada-equivalent model — China |
Maintenance & care
Follow the manufacturer's recommended maintenance schedule to support reliable machine operation.
- Regularly inspect the ram, machine frame, mechanical components and connections.
- Keep the worktable, clamps, tooling and backgauge mechanisms clean.
- Inspect ball screws, linear guide rails and bearings periodically, and lubricate them according to manufacturer guidelines.
- Check servo motors, servo drives, proximity switches and electrical components for proper operation.
- Inspect the CNC controller, foot switch and safety-related components regularly.
- Check the Z1 and Z2 backgauge mechanisms for smooth movement and accurate positioning.
- Operate the machine according to the manufacturer's safety and operating instructions.
