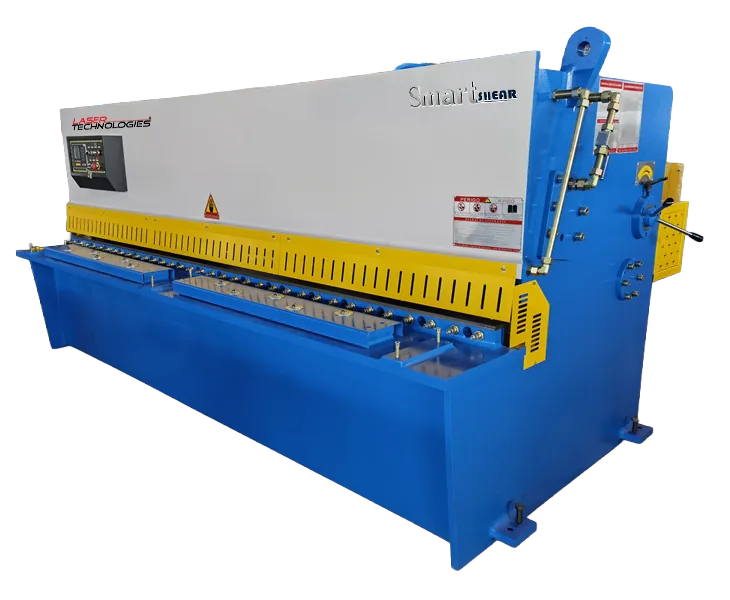

QC11K 6X2500
An NC/CNC hydraulic shearing machine with a 6 mm shearing thickness, 2,500 mm
- 6*2500 Model
- 6 mm Shearing Thickness
- 2500 mm Shearing Width
- 6–10 Pcs/min Number of Strokes
Product description
The QC11K-6X2500 is suited for sheet-metal cutting, electrical panels and enclosures, HVAC and duct components, automotive and auto-component blanks, and general industrial sheet preparation. For operation, power up the machine and check the hydraulic and control systems. Select the material and thickness settings and verify the blade condition. Set the required backgauge position, place the sheet against the gauge, and align it correctly. Activate the shearing cycle and monitor the cut. Check the first cut for dimensional accuracy and edge condition before continuing production within the machine's specified capacity. Remove cut pieces and scrap, then shut down and clean the machine.
- Handles sheet thicknesses up to 6 mm
- 2500 mm shearing width for model-specific sheet sizes
- 10–800 mm backgauge stroke for controlled positioning
- 6–10 Pcs/min stroke rate for production cutting
- E21S controller for controlled machine operation
- Hydraulic shearing configuration for the specified cutting capacity
Features
6 mm Shearing Thickness
The QC11K-6X2500 can shear sheets up to 6 mm thick within its specified operating capacity.
2500 mm Shearing Width
The machine provides a maximum shearing width of 2500 mm for model-specific sheet sizes.
10–800 mm Backgauge Stroke
The backgauge offers a stroke range of 10–800 mm for controlled sheet positioning before cutting.
6–10 Strokes per Minute
The machine provides a stroke rate of 6–10 pieces per minute for production shearing within its specified capacity.
E21S Controlled Operation
The machine uses an E21S controller for controlled backgauge operation and shearing setup.
Specifications
| Specification | Details |
|---|---|
| Model | 6 × 2500 |
| Shearing Thickness | 6 mm |
| Shearing Width | 2500 mm |
| Number of Strokes | 6–10 Pcs/min |
| Backgauge Stroke | 10–800 mm |
| Shearing Angle | 0.5°–1.5° |
| Main Motor Power | 5.5 kW |
| Dimensions (H × W × L) | 3000 × 1800 × 2000 mm |
| Machine Weight | 5 T |
| Oil Tank Capacity | 255 L |
Maintenance & care
Inspect and clean the upper and lower blades and cutting area regularly. Check blade condition, clearance, and alignment as applicable. Inspect the hydraulic oil level and check for leaks. Examine the backgauge mechanism, guide components, and servo drive where fitted. Check the electrical and control panel and emergency-stop circuit. Lubricate mechanical points according to service requirements and follow the manufacturer or service schedule for blade and hydraulic maintenance.
May we help?
- 1. What is the maximum shearing thickness of the QC11K - 6X2500?
- The QC11K - 6X2500 can shear material up to 6 mm thick.
- 2. What is the maximum shearing width of the machine?
- The machine provides a maximum shearing width of 2,500 mm.
- 3. What is the back barrier stroke range?
- The back barrier stroke ranges from 10 mm to 800 mm.
