ALFlak 200
A mobile Nd:YAG laser welding system with 200 W average power, 90 J pulse energy, 9 kW peak power and flexible three-axis positioning.
- 200 W Average power
- 9 kW Peak pulse power
- 90 J Pulse energy
- 1,500 mm Arm deflection
Product description

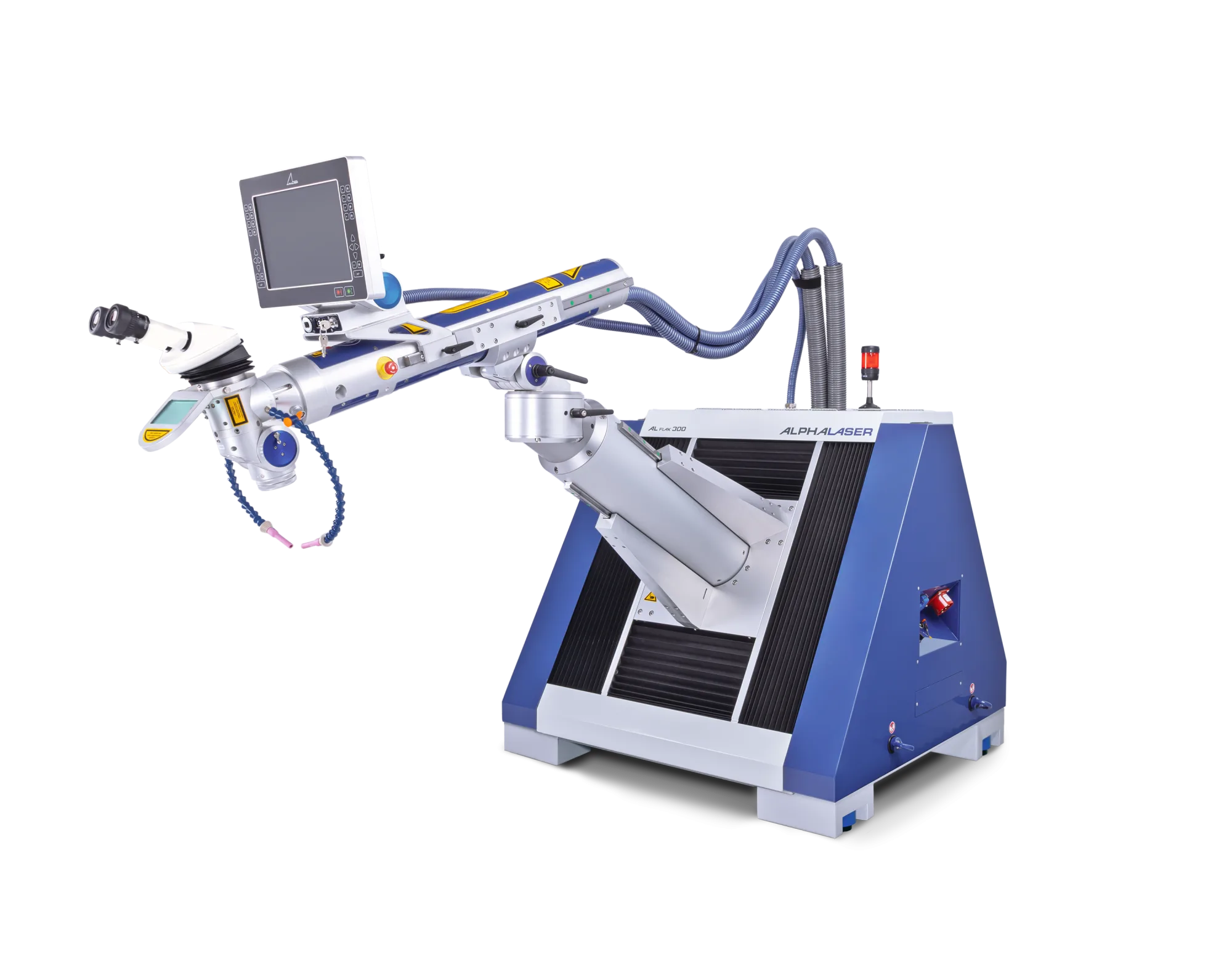

The Alpha Laser ALFlak 200 is a mobile Nd:YAG laser welding system designed for precision welding across components with different sizes and geometries. It delivers 200 W average power, 90 J pulse energy and up to 9 kW peak pulse power. Pulsed operation, adjustable pulse duration and single pulse to 100 Hz frequency provide process control. The freely positioned processing head supports manual or joystick-controlled movement across a 340 × 330 × 370 mm range.
Features
Nd:YAG Laser Technology
Uses a 1,064 nm Nd:YAG laser with 200 W average power.
90 J Pulse Energy
Delivers pulse energy up to 90 J for controlled welding applications.
9 kW Peak Pulse Power
Provides peak pulse power of up to 9 kW.
Flexible Pulse Control
Pulse duration can be adjusted from 0.5–20 ms, with frequency from single pulse to 100 Hz.
Three-Axis Positioning
The processing head moves across X, Y and Z axes, with a movement range of 340 × 330 × 370 mm.
Joystick-Controlled Movement
The processing head can be positioned manually or moved by motor using a joystick, at speeds of 0–25 mm/s.
Micro-Welding Option
Supports welding spots from Ø0.2–2.0 mm, with an optional micro-welding function offering 0.05–0.5 mm spots.
Flexible Operation
Laser parameters can be set through the display and membrane keyboard, multifunctional footswitch or WINLaser 5.0 software through an external PC.
ALFlak 200 specification
| Specification | Details |
|---|---|
| Model | ALFlak 200 |
| Laser Type / Wavelength | Nd:YAG, 1,064 nm |
| Average Power | 200 W |
| Peak Pulse Power | 9 kW |
| Pulse Energy | 90 J |
| Pulse Duration | 0.5–20 ms |
| Pulse Frequency | Single pulse–100 Hz |
| Operating Modes | Pulsed |
| Welding Spot | Ø0.2–2.0 mm / 0.05–0.5 mm with micro-welding option |
| Display and Operation | Display with membrane keyboard; laser parameters can also be set using a multifunctional footswitch; WINLaser 5.0 software through external PC |
| Focusing Objective | 150 mm, further according to lens data sheet |
| Pulse Shaping | Adjustability of power curve within a laser pulse |
| Observation Lens | Leica microscope attachment with eyepieces for glasses wearers 10 ×, optional 16 × |
| Movement Mechanism | Processing head can be freely positioned manually and moved by motor using a joystick |
| Movement Speed (X, Y, Z) | 0–25 mm/s |
| Movement Range (X, Y, Z) | 340 × 330 × 370 mm |
| Lowest Working Point | 200 mm |
| Highest Working Point | 1,500 mm |
| Arm Deflection | 1,500 mm |
| Electrical Connection | 3 × 400 V / 50–60 Hz / 3 × 16 A |
| External Dimensions (W × D × H) | 1,200 × 1,200 × 1,100 mm |
| Weight | With caterpillar track approx. 850 kg; without caterpillar track approx. 550 kg |
| External Cooling | Optional |
| Options | Turn and tilt objective, micro welding function, rotary axis module with chuck, tiltable for horizontal to vertical rotation, camera system, Ergo wedge, programmable laser wire feed system AL-DV |
