HANS G13035L

A large-format fiber laser cutting machine with a 13,000 × 3,500 mm processing format, 70 m/min positioning speed, and up to 80 kW laser power.

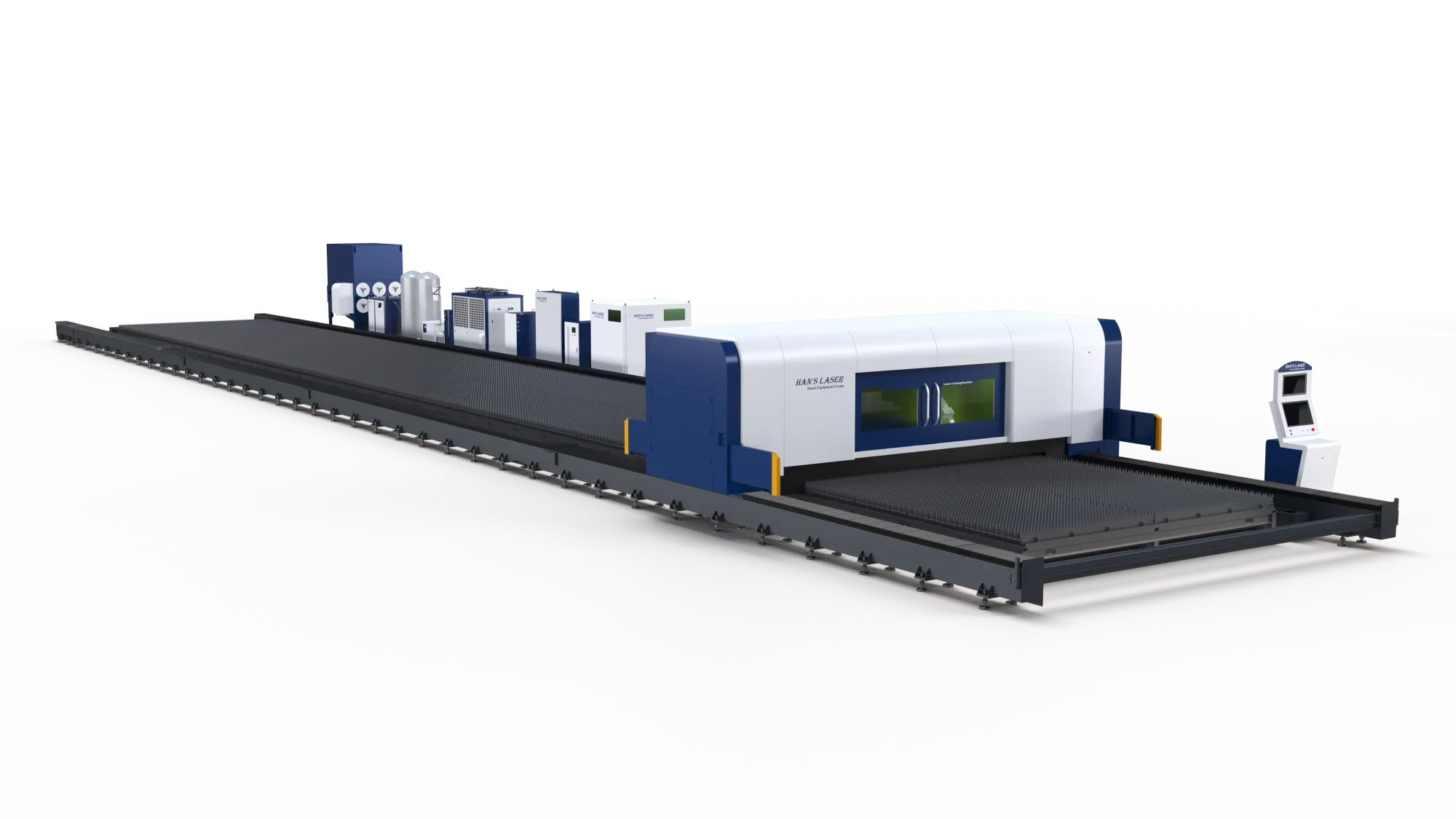

HANS G13035L — Sheet Laser Cutting Machine
  • 13,000 × 3,500 mm Processing format
  • 12–80 kW Laser power
  • 70 m/min Positioning speed
  • 13,500 mm X travel

Product description

The HANS Laser G13035L is designed for large-format sheet and plate processing, offering a 13,000 × 3,500 mm processing format. Its 13,500 mm X-axis and 36,500 mm Y-axis travel provide an extended movement range for handling large workpieces.

With a maximum X/Y positioning speed of 70 m/min and 200 mm Z-axis travel, the machine supports efficient positioning across its expansive processing area. It is available with laser power configurations from 12 kW to 80 kW, providing flexibility for different industrial production requirements.

Features

13,000 × 3,500 mm Format

The large processing format provides extensive capacity for processing wide and long sheets and plates.

Up to 80 kW Laser Power

Multiple laser power configurations allow the machine to be matched to different production requirements.

Large Processing Format

A 13,000 × 3,500 mm processing format provides substantial working capacity for large- format applications.

Extended Axis Travel

The 13,500 mm X-axis and 36,500 mm Y-axis travel provide broad movement across the processing area.

70 m/min Positioning Speed

Maximum X/Y positioning speed of 70 m/min supports efficient movement between processing positions.

12–80 kW Laser Options

The machine is available with 12 kW, 20 kW, 30 kW, 40 kW, 60 kW, and 80 kW laser configurations.

G13035L specification

SpecificationDetails
BrandHANS Laser
SeriesL/HL Series
ModelG13035L
Product TypeLaser Cutting Machine
Overall Dimensions~18 m × 7.5 m
Processing Format13,000 mm × 3,500 mm
X-axis Travel13,500 mm
Y-axis Travel36,500 mm
Z-axis Travel200 mm
Max. Positioning Speed (X/Y)70 m/min
Laser Power Options12 kW / 20 kW / 30 kW / 40 kW / 60 kW / 80 kW

Maintenance & care

Regularly clean the machine and inspect mechanical, optical, and motion-system components. Follow HANS Laser’s recommended maintenance procedures and service schedule for reliable long-term operation.

May we help?

What is the processing format of the G13035L?
The G13035L has a processing format of 13,000 mm × 3,500 mm.
What laser power options are available?
The machine is available with 12 kW, 20 kW, 30 kW, 40 kW, 60 kW, and 80 kW laser configurations.
What is the maximum positioning speed?
The maximum X/Y positioning speed is 70 m/min.
